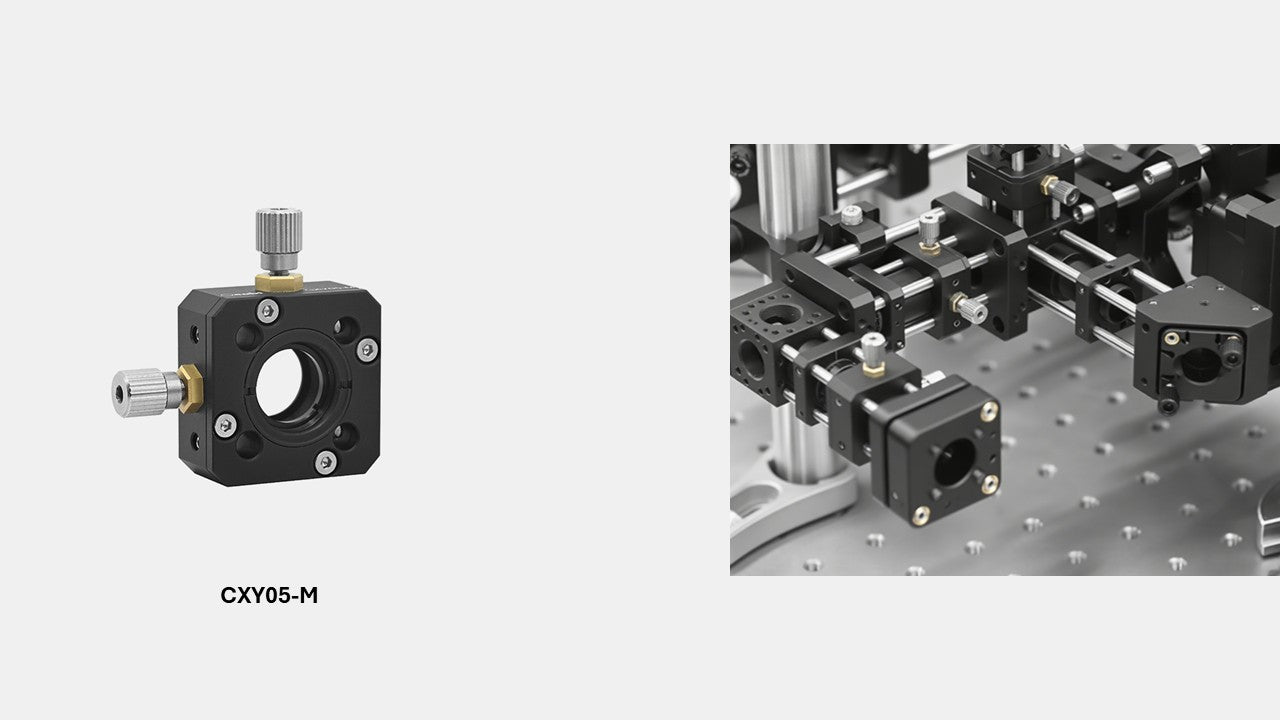

CXY05-M XY Translation Mount (SM05-Compatible for 16 mm Cage Systems)
• SM05 (0.535"-40) internal threading. • Provides ±1.0 mm XY translation travel. • Supports Ø12.7 mm optics with a maximum thickness of 5.8 mm. • Compatible with SPCM series Ø4 mm cage rods. • Fully compatible with 16 mm cage systems and SM05 lens tubes.
The CXY05-M XY Translation Mount is designed for compact 16 mm cage systems, offering fine XY-plane adjustment of mounted optics. It allows precise positioning of Ø1/2" lenses relative to the optical axis, improving alignment and imaging performance in tightly spaced setups. The mount is ideal for beam steering, focusing, and micro-alignment applications within space-constrained optical assemblies.
