XY Translation Mounts for 30 mm Cage Systems, 6 mm Travel

Product Description

• Two adjusters enable ±3 mm travel in both X and Y directions

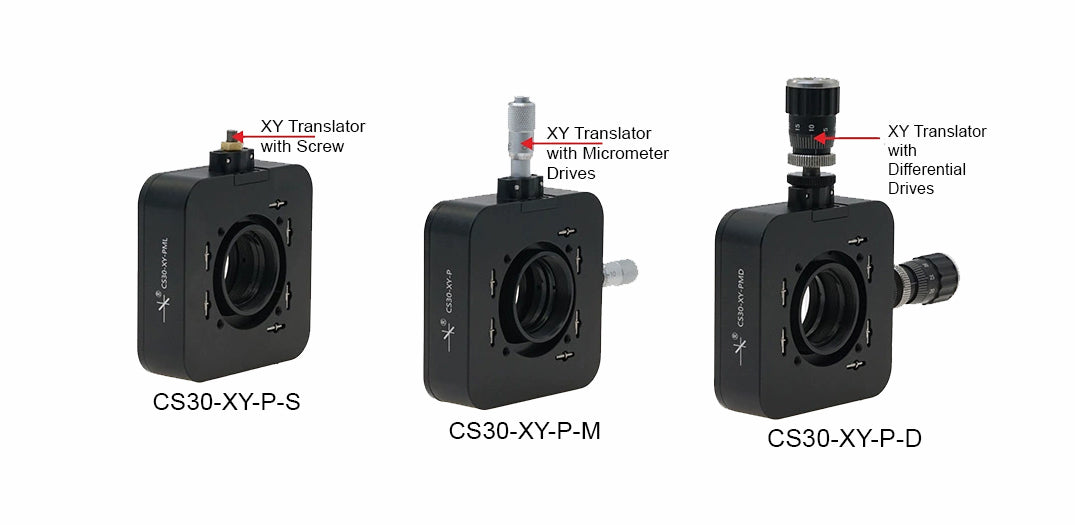

• Available with precision screw drive, micrometer drive, and differential drive
• SM1 internal thread for mounting Ø25.4 mm (1 inch) optical components
• Includes two SM1 retaining rings, supporting optics up to 12.2 mm thick
• Compatible with 30 mm cage system

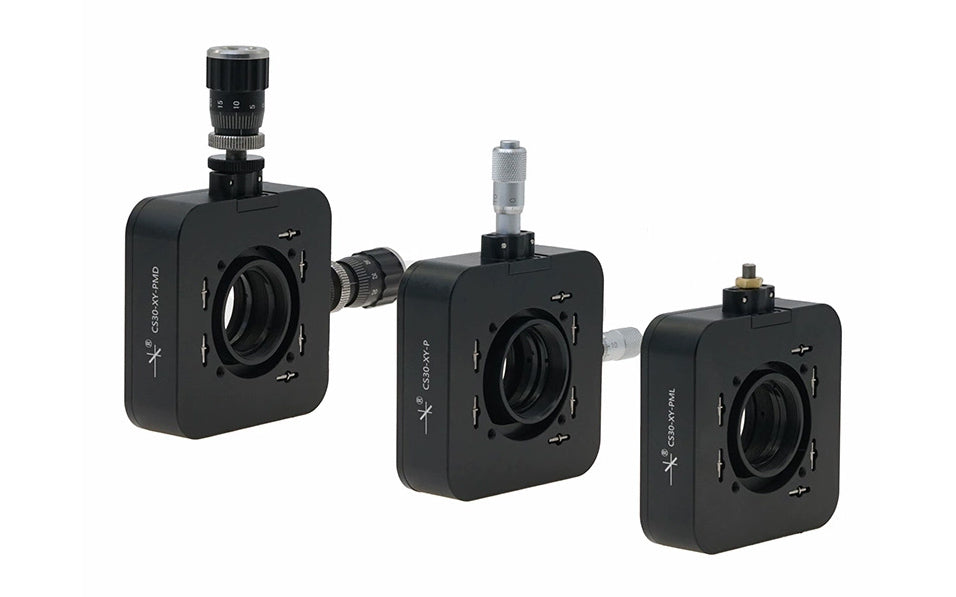

Models CS30-XY feature two adjusters—driven by either precision screws or micrometers—designed for fine positioning of Ø25.4 mm optical elements. The stage allows precise adjustment along both X and Y axes, with a travel range of ±3 mm per axis.

The XY translation module includes SM1 (1.035"-40) internal threading on the front plate, allowing direct mounting of Ø25.4 mm optics and lens tubes. Two SM1 retaining rings are provided for securing optics up to 12.2 mm thick. The front plate’s central SM1 thread is compatible with Ø25.4 mm lens tubes.

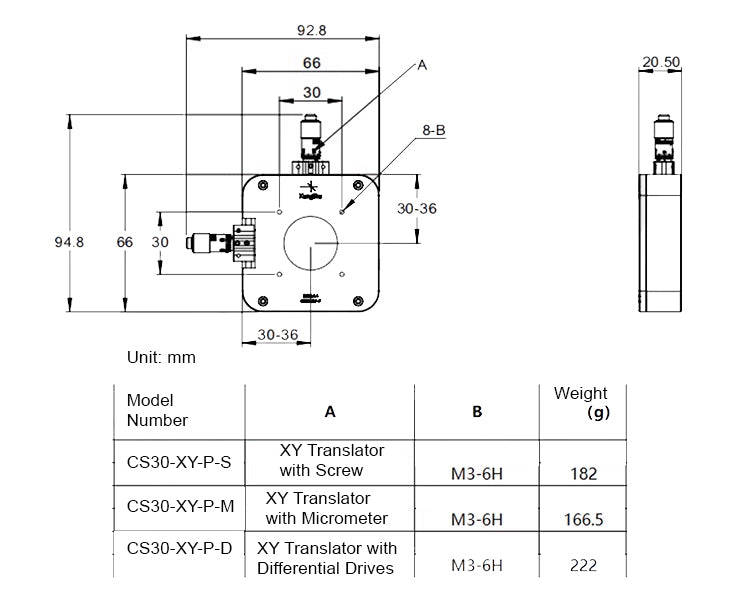

The mount includes three M4 threaded holes for direct mounting onto optical posts and is fully compatible with standard 30 mm cage systems. The platform size of the XY translation stage is 66 × 66 mm^2.
