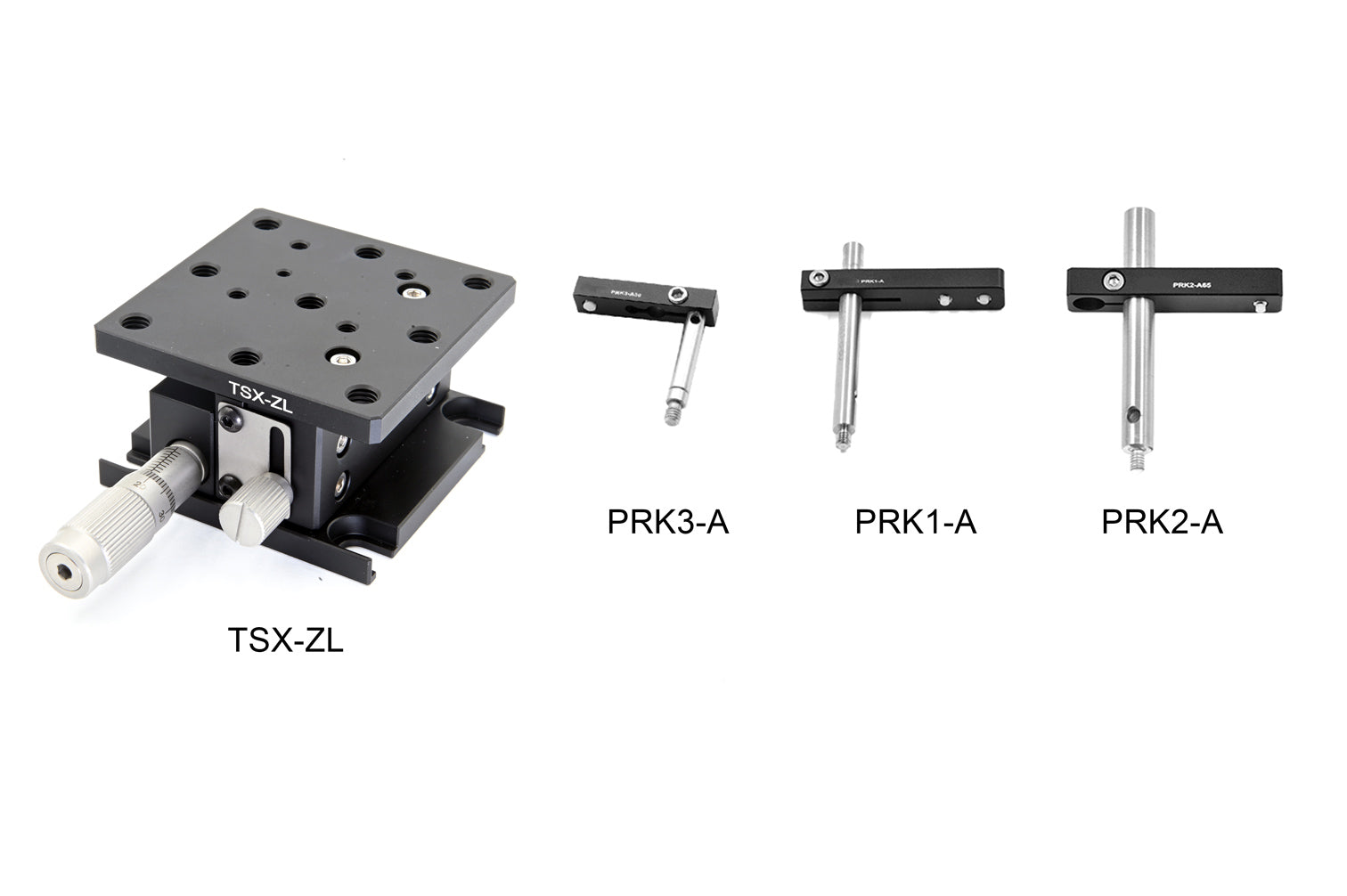

Z Axis, Platform Surface 63mm x 63mm, Travel Range 8.5 mm, Crossed Roller Bearings

Product Description
• Crossed roller guide rail with micrometer-driven Z-axis vertical adjustment of the platform;
• Vertical travel range: 8.5 mm;
• Stage size: 63 × 63 mm with threaded hole array;

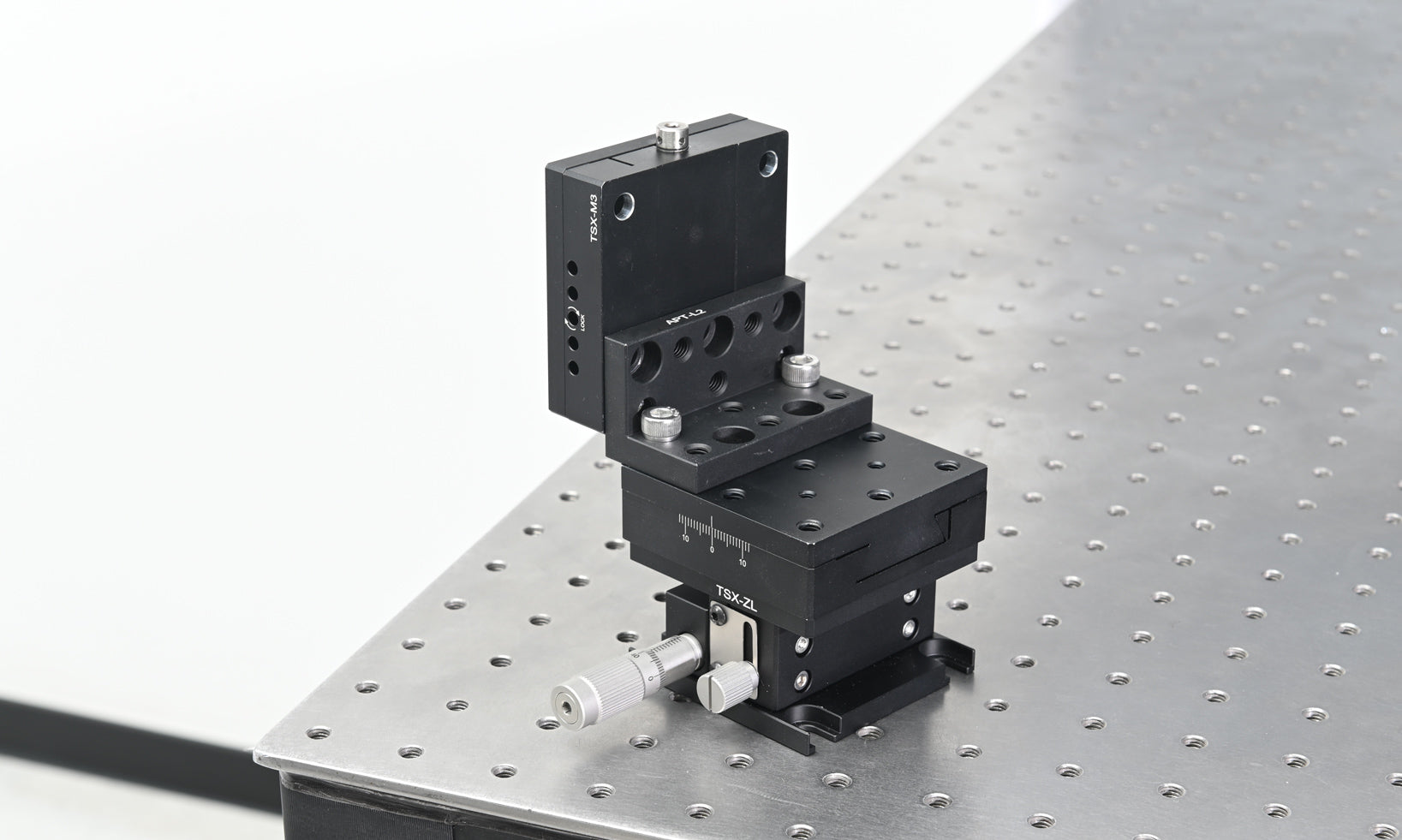

• Modular design allows stacking in X, XY, or XYZ configurations;
• M6 countersunk holes for mounting on metric or imperial optical tables;

The TSX-ZL vertical translation stage offers a height adjustment range of 8.5 mm, with platform height adjustable from 37.5 mm to 46 mm.

Product Description - Clamping Arms

• Provides clamping force for platform-mounted adjustment holders;
• Flexible clamping mechanism;
• M4 threaded rod base;

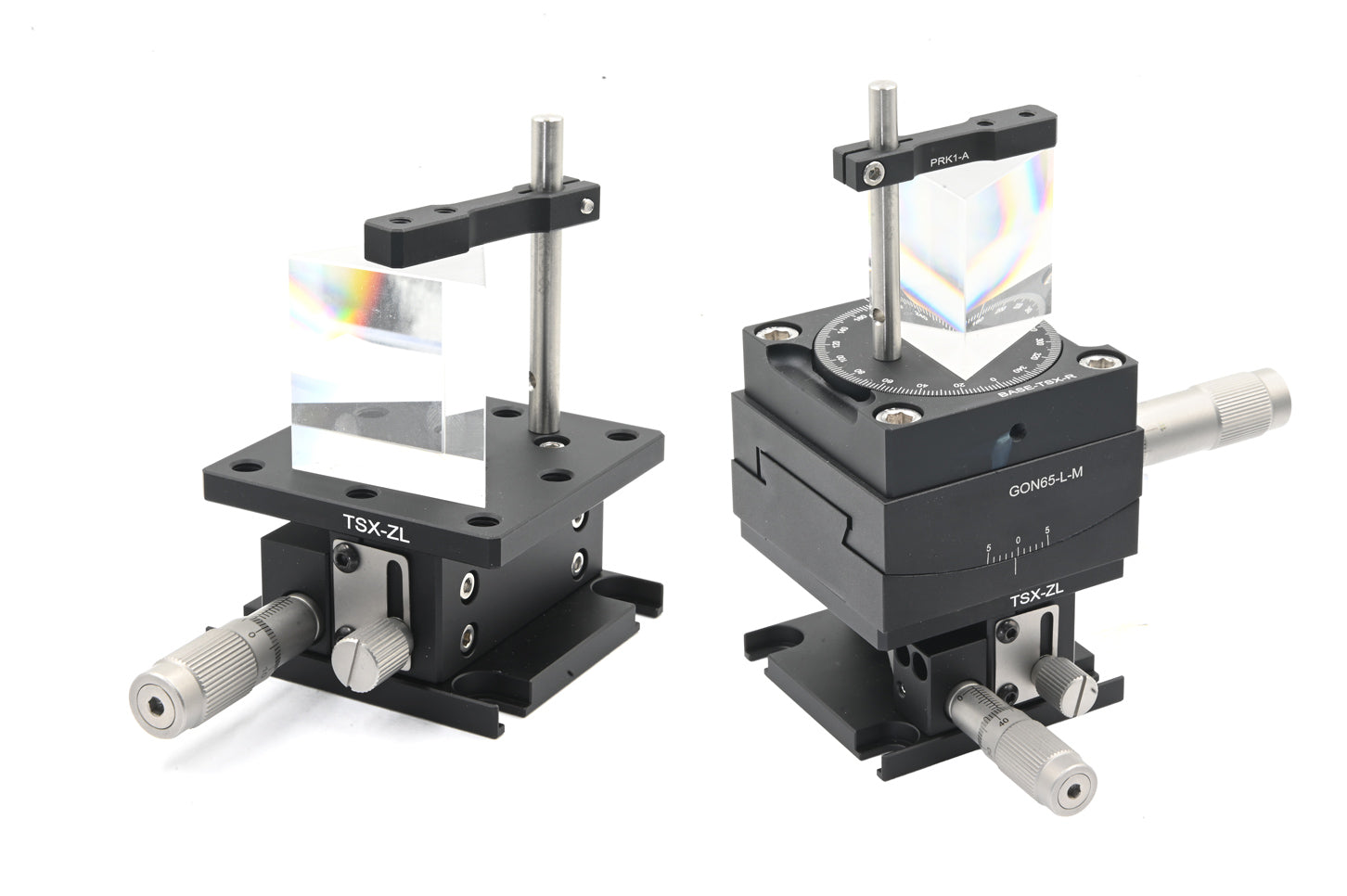

The clamping arm secures the optical element onto platform-mounted optical adjustment holders or V-groove clamps using a nylon-tipped set screw with a 2 mm hex. The flexible mechanism of the clamping arm is locked onto the mounting rod using a 2.5 mm ball driver or hex key. The mounting rod also features a through-hole for applying additional torque during tightening.

Specifications - Clamping Arms
